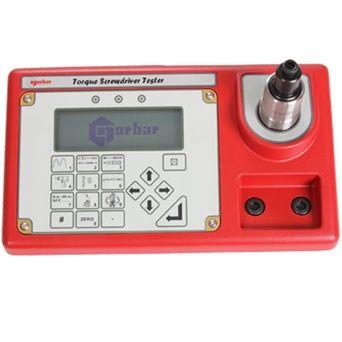

SISTEMA ANALIZADOR NORBAR DE TORQUE TST 25

Código: 75011219

Marca: NORBAR

MARCA: NORBAR -ART.43214

$ 4.083.703,00

Stock: 2 unidades

The TST combines simplicity with up to date technology to provide a high quality instrument for the testing and calibration of low capacity torque tools. Featuring an internal transducer complete with Rundown Fixture, the TST is available in 3 torque ranges, 0.04 to 2 N·m, 0.5 to 10 N·m and 1.25 to 25 N·m, and has a system accuracy over its Primary range (+/-0.5% of reading from 20% to 100% of full scale). What makes the TST genuinely versatile is the interface for an external transducer. This interface, accessed by a 2 way switch in the TST, allows the connection of any transducer from Norbar's "SMART" range and most mV/V calibrated transducers from Norbar or other manufacturers. The Series 2 products bring a number of enhancements over the original versions. Most importantly, the increase in display resolution results in a significantly improved instrument accuracy. True analog output and continuous RS 232 makes the instrument suitable for a wide range of process control and monitoring applications.

Part number: 43214
EAN Bar Code: -
NATO number: -
Accuracy: +/-0.5%
Operates between:

12.5 - 250.0 lbf·in

1.2 - 25.0 N·m

0.9 - 18.0 lbf·ft

177.0 - 3540.0 ozf·in
